COMPACT PLANTS
SYNERTECH

Water Treatment Solutions

Select a category to explore our equipment, technologies and services.

Sediment Control and Environmental Compliance

RHINO Series: Heavy-Duty Washing

Stopping mud and mining sediment before they contaminate public roads requires more than good intentions; it requires reliable technology. Avoid penalties and comply with strict environmental regulations using the RHINO Series Wheel Washing Systems. We provide intensive cleaning for trucks and heavy fleets through a closed-loop system that recirculates up to 95% of the water. Maximum operational performance with minimal environmental impact.

View Wheel Washing Equipment

RHINO SERIES: MAIN WASHING SYSTEMS

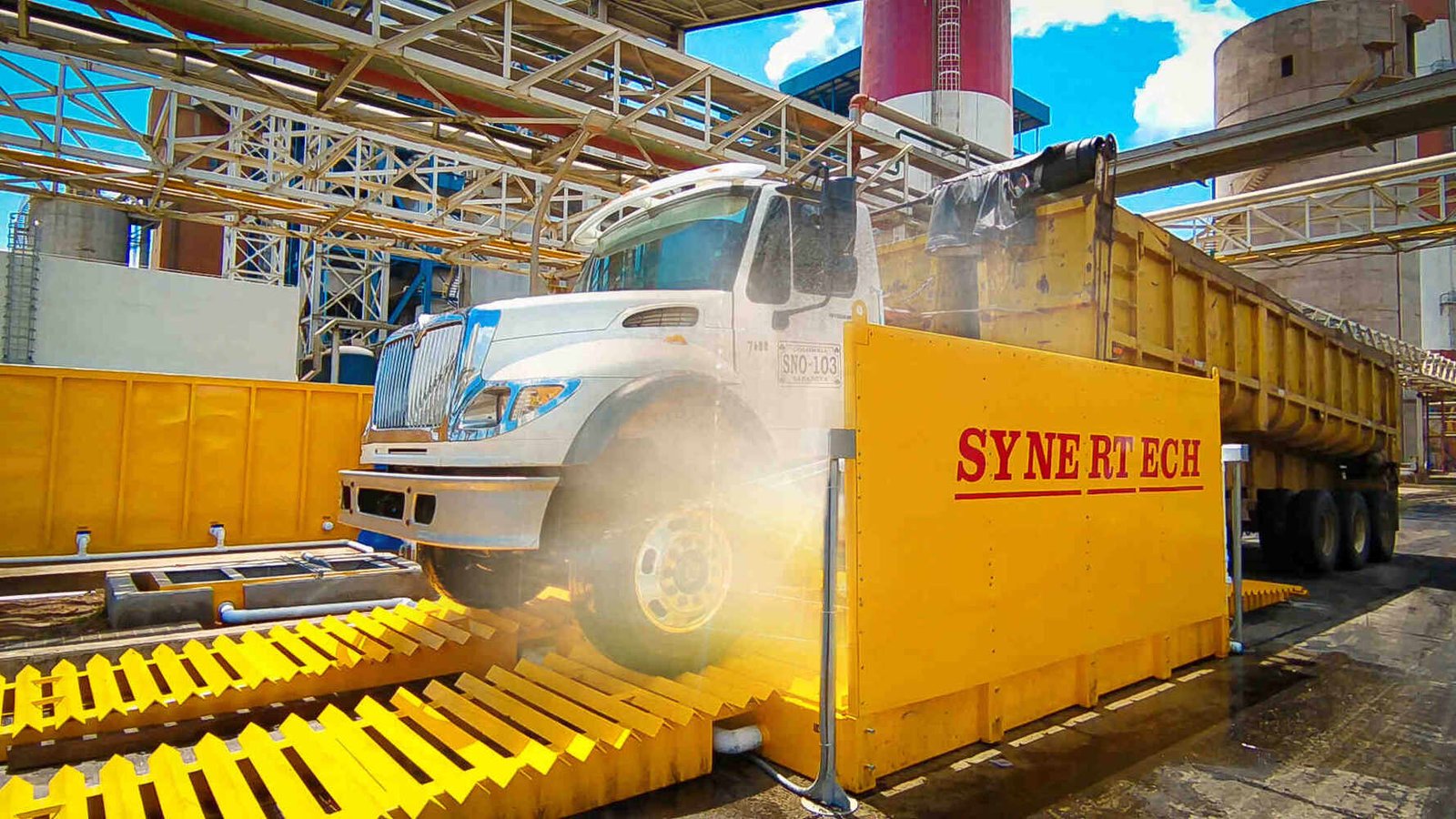

Automatic RHINO Washing System

RHINO SYSTEM (Automatic)

Dynamic high-pressure solution equipped with motion sensors. It thoroughly cleans wheels and chassis in seconds while the truck moves through the system. Its closed-loop circuit settles sludge and automatically reuses the water.

View Specifications ⟶
Off-Grid Eco RHINO System

ECO RHINO

Ultra-durable structure designed for the harshest operating conditions. It works as a drive-through immersion and high-friction basin that removes heavy clay and dense mud without requiring electrical power.

View Specifications ⟶

OPTIONAL FEATURES AND INFRASTRUCTURE UPGRADES

RHINO Washing and Spray Arch

RHINO ARCH

High-spray perimeter washing arches. Ideal for wetting loads to reduce dust clouds and airborne particles, or for applying biocides and disinfectants to fleets in food-industry operations.

View Specifications ⟶
RHINO in Stainless Steel

RHINO IN STAINLESS STEEL

The highest level of durability. Our RHINO systems manufactured entirely in 304/316L stainless steel provide exceptional service life and are ideal for highly corrosive environments, coastal areas and chemical-industry applications.

View Specifications ⟶

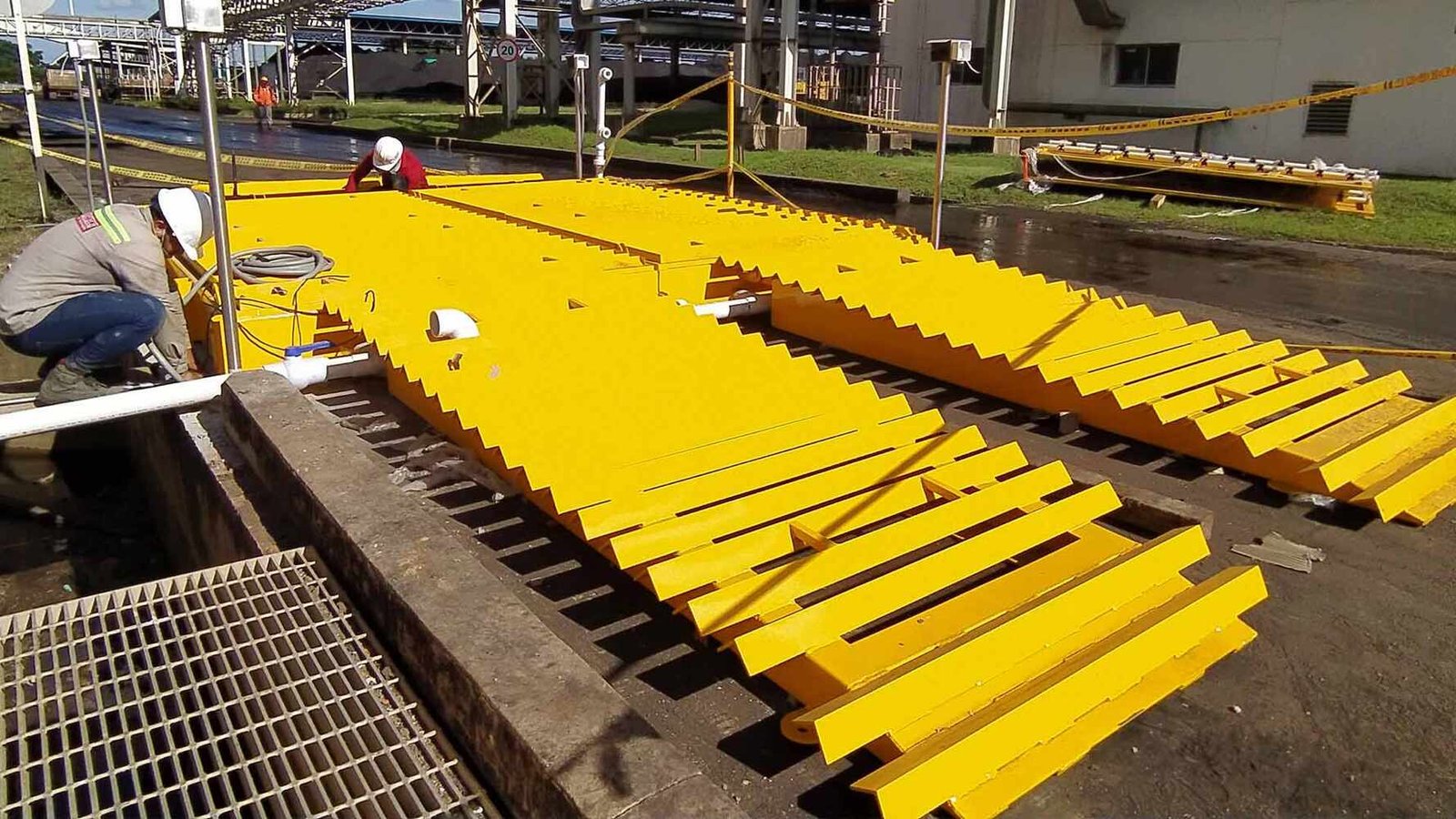

Drainage Tracks

GROOVED TRACKS AND RAMPS

Optimize your washing station with vibration ramps that loosen dried mud from tires before washing, and downstream drainage tracks that recover excess water before vehicles enter public roads.

View Specifications ⟶

PROCESSES INCLUDED

RHINO WASH

On-site wheel washing system: Synertech's automated system is based on a modular concept developed by our engineers specifically for the construction and mining industries. The system stands out for its robust construction, high operating performance, fast installation and outstanding water-recirculation capability.

An advanced process in which polymers and specific chemical reagents are dosed to group fine suspended particles such as mud and clay. This agglomeration forms heavy flocs that settle much faster, clarifying the water for the next cycle.

A critical physical-separation stage where suspended solids and heavy sludge settle at the bottom of the clarification tank. Clear, low-turbidity water remains at the surface, helping prevent sediment from clogging the washing nozzles.

The integrated cyclonic grit separator uses centrifugal force to remove sand, gravel and other solid impurities. As dirty water enters, a high-speed vortex is generated; heavy particles strike the walls and fall into a collection chamber, while cleaner water rises through the center, ready for high-pressure reuse.

Environmental Control and Road Safety: For construction and mining operations with constant heavy-vehicle traffic, installing a wheel washing system at the project exit is essential. These systems immediately remove mud and debris from tires, helping prevent contamination of public roads, reduce particulate emissions and support compliance with traffic and environmental regulations.

The integration of hydrocyclones enables dynamic separation of sand and coarse solids without moving parts. This technology makes it possible to recirculate up to 95% of the water used, significantly reducing operating costs and the project's water footprint.

Where tires or chassis operate in areas exposed to hydrocarbons, heavy grease or corrosive chemicals, such as refineries or asphalt plants, we integrate degreaser dosing systems and API separators. This provides effective free-oil removal without compromising tire rubber or the structural steel of the vehicles.

"Sediment control on public roads is non-negotiable. Protect your mining, quarry or construction operation with the RHINO Series Automatic Wheel Washing System. Designed for continuous cleaning of heavy fleets under extreme conditions, the system removes dense clay and mud in seconds while integrating a clarification process that intelligently recycles water. Continuous operation and reliable regulatory compliance."

TREATMENT LINES AND SOLUTIONS

ENGINEERING DEPARTMENT

Let's Discuss Your Project

Our team of specialized engineers is ready to size and quote the exact technology required for your water or sludge treatment needs.

Solutions at an
Industrial Scale

More than 35 years manufacturing and implementing treatment plants and purification equipment under demanding international standards.
